Railway Track and Tunnel Inspection using Drones
Overview
Railway and tunnel inspections with drones provide a safe, efficient, and non-intrusive way to monitor infrastructure health in challenging or confined environments. Drones equipped with high-lumen lighting, LiDAR, and thermal sensors capture detailed imagery of tracks, walls, and tunnel linings to detect cracks, leaks, or misalignments. This approach eliminates the need for human entry in hazardous zones and ensures continuous, accurate monitoring of railway assets.
Process Flow

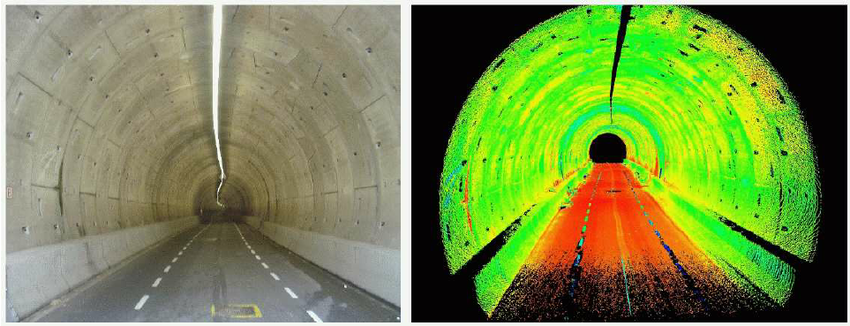

Reference Image
Relevant Outcomes / Deliverables
| Deliverable | Format | Usage |
|---|---|---|
| Tunnel Scan / 3D Model | OBJ / PLY / LAS | Structural analysis |
| Defect Report | PDF / CSV | Maintenance scheduling |
| Alignment Map | GeoTIFF / SHP | Track alignment validation |
| Visual Record | MP4 / JPG | Documentation for audits |
Achievable Accuracy
| Parameter | Typical Accuracy | Depends On |
|---|---|---|
| Crack Detection | ~1 mm | Lighting & camera resolution |
| Positional Accuracy | ±3–5 cm | GNSS / IMU quality, tunnel GPS loss compensation |
Key Advantages
- Enables inspection in confined or GPS-denied environments
- Reduces inspection time by up to 70%
- Eliminates human risk in tunnels and underpasses
- Generates precise 3D models for clearance and safety checks
Compatible Drone Platforms
- Collision-tolerant drones (Micro-Ranger)
- Compact multirotors with obstacle avoidance
Supported Sensors / Payloads
- RGB + Thermal Cameras
- LiDAR or Depth Sensors
- High-Intensity LED Lighting Systems
Industry Segments Benefited
- Indian Railways
- Metro Rail
- Tunnel Engineering Firms
- Infrastructure Consultants
- Safety Auditors
